Automatic Multi-Function Stainless Steel Crushing & Grinding Plant with Dust Collection – Ideal for Sugar, Spice, Herb & Heat-Sensitive Materials

Our company holds ISO9001 certification, ensuring reliable quality and stable performance. Below is the complete specification and service introduction for our automatic multi-function stainless steel crushing plant, designed for high output, fine powder, and clean operation.

I. Product Overview

This multi-functional powder grinder plant is applicable to a wide range of materials with high output. It is especially suitable for crushing sugar, spices, herbs, and other heat-sensitive materials without degradation.

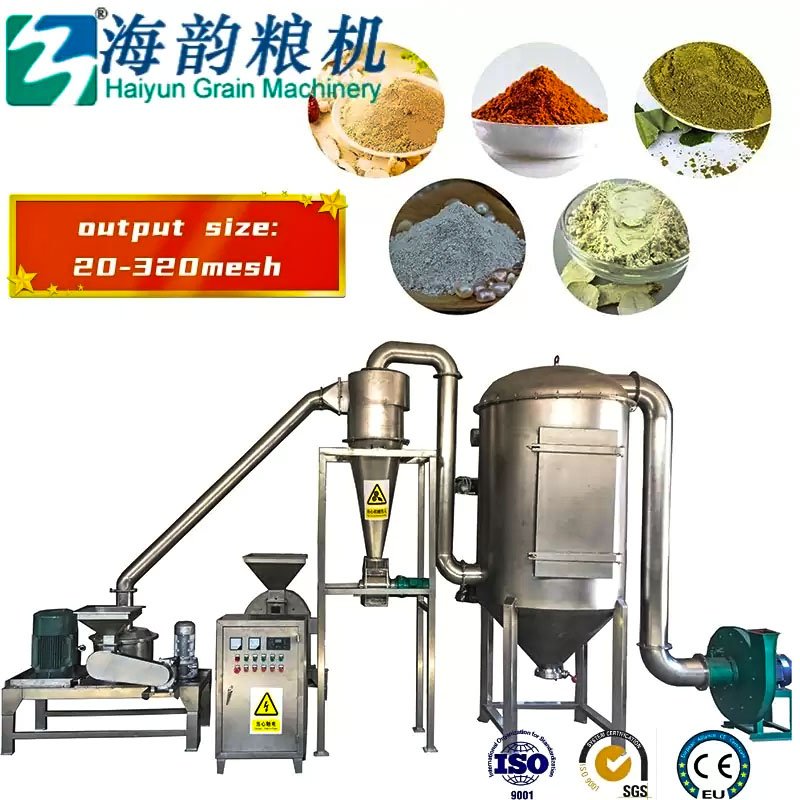

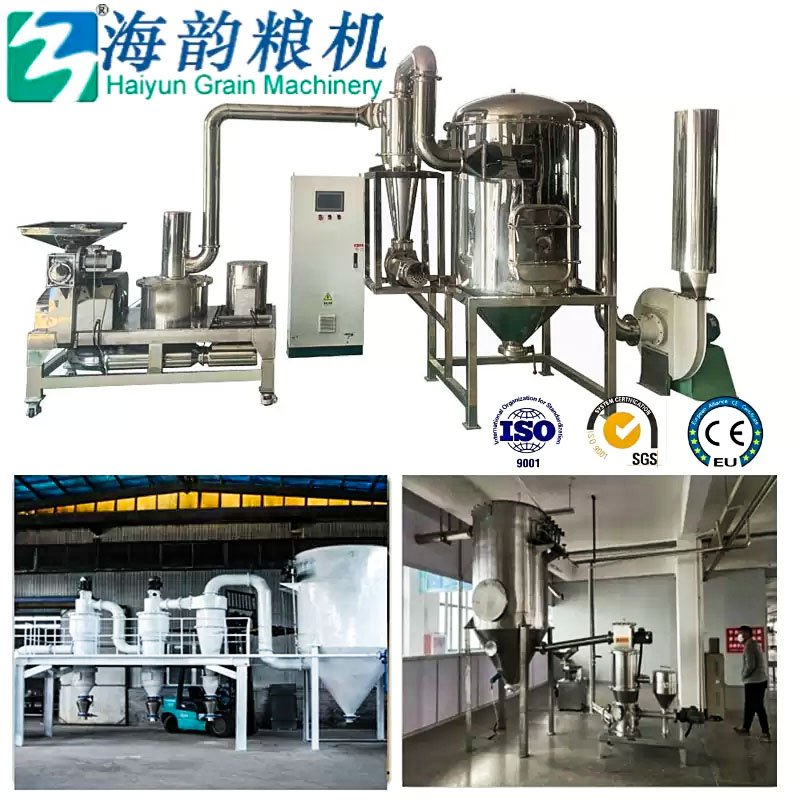

The system consists of:

• Crushing part

• Piping

• Discharging part

• Dust-collecting part

• Electronic control cabinet

Key technology: Winnowing without screen. A grading fan inside the crushing chamber controls the fineness and prevents over-crushing. Powder is conveyed by negative pressure to a cyclone separator, discharged via a gate blower, while dust is filtered and recovered through the dust-collecting cabinet.

This equipment is widely used in pharmaceutical, food, chemical, and spice processing industries as ideal fine crushing equipment.

II. Machine Structure

The mainframe comprises:

• Frame

• Stepless motor

• Crushing chamber (with crushing knives, grading device, and crushing pan)

• Grading shaft located inside the crushing shaft

• Maze-type bearing seals for protection

III. Working Principle

1. Material is conveyed into the crushing chamber by a screw conveyor through the feeding hopper.

2. Material is cut by both the rotating knife and fixed teeth ring, crushed by high-speed rotating blades, and simultaneously affected by high-frequency vibration from the air vortex.

3. Powder rises with the airflow into the grading device.

4. Particles coarser than the grading mesh size return to the crushing chamber for further crushing.

5. Particles that meet the required fineness are carried into the cyclone separator by centrifugal force and discharged through the gate blower.

6. Fine dust enters the dust-collecting cabinet for filtration and recovery (clean exhaust).

IV. Main Technical Parameters (Customizable)

Note: Specific parameters such as capacity (kg/h), motor power (kW), overall dimensions (L×W×H), and container quantity can be provided upon request based on your required output.

V. Key Advantages

• No-screen winnowing design – eliminates screen blockage, suitable for heat-sensitive materials

• Grading fan inside crushing chamber – precise fineness control, avoids over-crushing

• Integrated dust collection – clean working environment, powder recovery

• Stainless steel construction – corrosion-resistant, meets food & pharma standards

• Stepless motor – adjustable speed for different materials

• Negative pressure conveying – reduces temperature rise, protects heat-sensitive ingredients

• Easy to clean and maintain – suitable for multiple products

VI. Installation & Commissioning Options

• On-site paid service – We dispatch technicians for installation guidance, commissioning, trial operation, and local worker training. Salary: USD 100/day. Customer covers visa, travel, accommodation, insurance, etc. Normal period: approx. 15–30 days (site dependent).

• Free online technical guidance – Remote video/chat support for installation and commissioning at no cost.

VII. Customer Obligations

• Provide necessary lifting equipment and common tools

• Water and power supply (transformer capacity based on total installed power)

• Civil works according to our design drawings

• Per shift: 1–2 technicians + 2–4 packing/handling personnel

VIII. Packaging & Shipping

• Inner packaging – stretch film

• Outer packaging – standard export wooden case or shipping container

• Delivery lead time – within 30 days after payment

IX. After-Sales Service Commitment

• Warranty period – 1 year from successful commissioning and acceptance

• Free spare parts – for non-wear parts due to manufacturing defects during warranty (wear parts as per industry standard)

• Lifetime service – paid technical support and spare parts supply after warranty

• Pre-delivery testing – each machine tested and adjusted before shipment; operation video and manual provided

X. FAQ

Q1: Why choose your multi-function grinding plant?
A: Over 70 years of machinery experience (formerly Shandong Flour Machinery Factory). Our no-screen winnowing design with integrated dust collection is ideal for heat-sensitive materials. We offer competitive pricing and professional turnkey service.

Q2: Are you a manufacturer?
A: Yes, we are a factory with more than 70 years of history. Factory visits are welcome.

Q3: What materials can this machine crush?
A: Sugar, spices (pepper, chili, cinnamon, etc.), herbs, pharmaceutical ingredients, and other heat-sensitive materials. Also suitable for food and chemical products.

Q4: How is fineness controlled without a screen?
A: A built-in grading fan rotates at adjustable speed to control particle size. Oversized particles stay in the crushing chamber, while fine powder passes through the airflow system.

Q5: Does the machine overheat heat-sensitive materials?
A: No. The negative-pressure conveying and air vortex keep temperatures low, protecting heat-sensitive components.

Q6: Do you have ISO certification?
A: Every model has a valid ISO9001 certificate, available upon request.

---

We are committed to long‑term, mutually beneficial cooperation. For detailed capacity options, power requirements, workshop layout, or a complete quotation, please contact us.
