Complete Chili Powder Processing Mill Plant – Dry Cleaning, Crushing, Grinding & Sieving
Our company holds ISO9001 certification, ensuring reliable quality and stable performance. Below is the complete specification and service introduction for our chili powder processing line, designed for high efficiency, low power consumption, and superior product quality.
I. Overview & Core Advantages

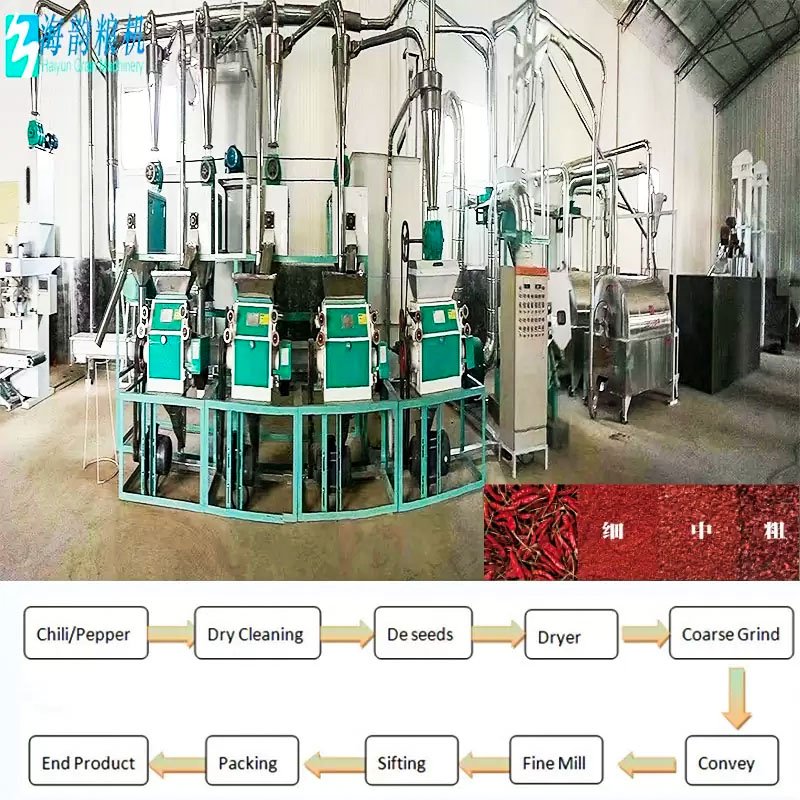

This chili powder production line integrates dry cleaning, crushing, buffer storage, and fine grinding with a patented four-roller mill and extended round sieve. Compared to ordinary two-roller mills, our design delivers twice the output with lower energy consumption. The final powder fineness ranges from 30 mesh to 80 mesh.
Key Advantage – Four-Roller Grinder with Built-in Round Sieve
-
Four rollers instead of two → higher efficiency, lower power cost
-
Built-in round sieve is twice as long as standard sieves → effectively prevents mesh blockage during operation
II. Main Equipment & Technical Parameters
1. Dry Chili Cleaning Machine (Recommended for best results)
To ensure proper dryness for subsequent crushing and grinding, we recommend the dry cleaning method instead of wet washing.
| Parameter | Value |
|---|---|
| Input capacity | 200 – 1000 kg/h |
| Power | 3 kW |
| Weight | ~600 kg |
| Working principle | Rotary drum with built-in acrylic brushes. Light dust is brushed away and discharged from the upper outlet; heavy impurities fall to the bottom outlets. |

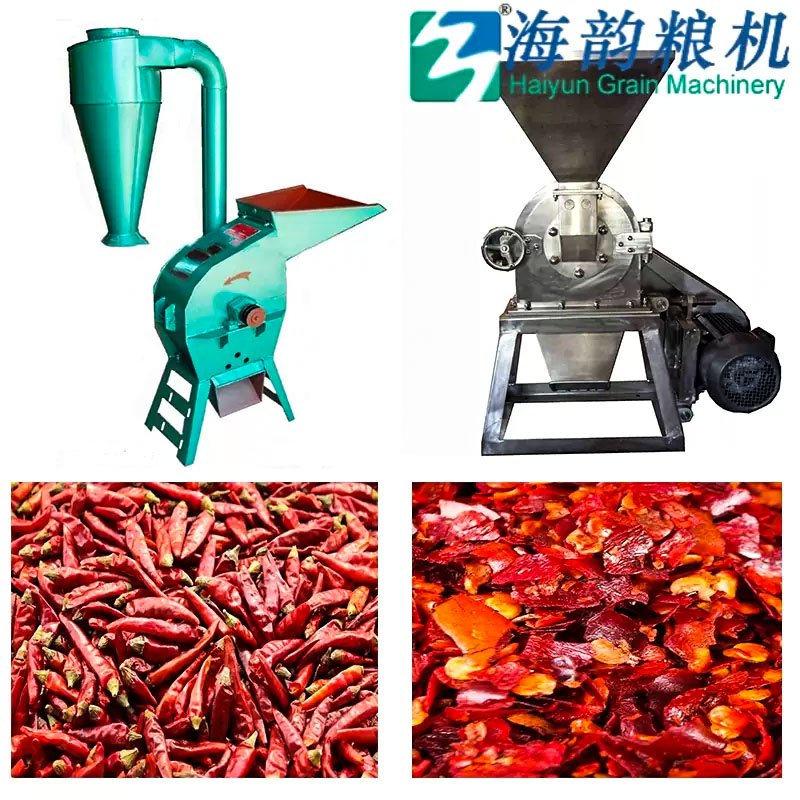

2. Chili Crusher
Reduces cleaned chili peppers to 8–12 mm pieces, improving grinder efficiency and output.
| Parameter | Value |
|---|---|
| Motor power | 11 – 22 kW |
| Output | 1 – 5 tons per hour |
3. Chili Buffer Silo
Stores crushed chili and feeds it evenly into the fine grinder.
| Parameter | Value |
|---|---|
| Weight | ~150 kg |
| Volume | 500 m³ |
| Main motor | 3 kW |
| Auger motor | 1.5 kW |
4. Chili Powder Grinder (Patent Technology)
The core machine of the line – four-roller design with extended round sieve.
| Parameter | Value |
|---|---|
| Output | Customizable per customer requirement |
| Fineness | 30 – 80 mesh |
| Power consumption | Lower than conventional grinders |
| Voltage | Customized according to customer requirement |
Note: This grinder has been successfully exported to India, Sri Lanka, Mexico, and Chile, with excellent customer feedback.
III. Complete Line General Specifications
| Parameter | Details |
|---|---|
| Processing capacity | Customizable (based on customer requirement) |
| Final product | Chili powder (30–80 mesh) |
| Voltage | Customized |
| Delivery time | Within 10 days after payment |
| Packaging | Stretch film inside + standard wooden case or shipping container |
IV. Installation & Commissioning Options
-
On-site paid service – We dispatch technicians for installation guidance, commissioning, trial operation, and local worker training. Salary: USD 100/day. Customer covers visa, travel, accommodation, insurance, etc. Normal period: approx. 20–30 days (site dependent).
-
Free online technical guidance – Remote video/chat support for installation and commissioning at no cost.
V. Customer Obligations
-
Provide necessary lifting equipment and common tools
-
Water and power supply (to be confirmed based on total installed power)
-
Civil works according to our design drawings
-
Per shift: 1–2 technicians + 2–4 packing/handling personnel
VI. Product Advantages Recap
-
Four-roller grinder – 2× output of ordinary mills, lower energy cost
-
Extended round sieve – built-in, anti-blocking design
-
Dry cleaning – maintains low moisture content for better grinding
-
Complete turnkey – from cleaning, crushing, storage to fine grinding
-
Proven export experience – India, Sri Lanka, Mexico, Chile, etc.
-
ISO9001 certified – quality guaranteed
VII. Packaging & Shipping
-
Inner packaging – stretch film
-
Outer packaging – standard export wooden case or shipping container
-
Delivery lead time – within 10 days after payment
VIII. After-Sales Service
-
Warranty period – 1 year after successful commissioning
-
Free spare parts – for non-wear parts due to manufacturing defects during warranty
-
Lifetime service – paid technical support and spare parts after warranty
-
Pre-delivery testing – each machine tested and adjusted before shipment; operation video and manual provided
IX. FAQ
Q1: Why choose your chili powder machine?
A: Over 70 years of grain & spice machinery experience (formerly Shandong Flour Machinery Factory). Our patented four-roller design delivers double the output with lower power consumption. Competitive pricing and proven exports.
Q2: Are you a manufacturer?
A: Yes, we are a factory with more than 70 years of history. Factory visits are welcome.
Q3: What is the fineness range?
A: From 30 mesh to 80 mesh, adjustable according to your requirements.
Q4: Do you provide a dry cleaning solution?
A: Yes, we strongly recommend our dry chili cleaning machine to maintain dryness for optimal grinding. Wet washing is not recommended unless you have additional drying equipment.
Q5: Is the machine easy to operate and maintain?
A: Yes. Manual or pneumatic drive options, quick-replaceable sieve plates, durable emery rollers, and minimal wear parts.
Q6: Do you have ISO certification?
A: Every model has a valid ISO9001 certificate, available upon request.
We are committed to long‑term, mutually beneficial cooperation. For customized capacity, voltage, or a complete quotation, please contact us.
