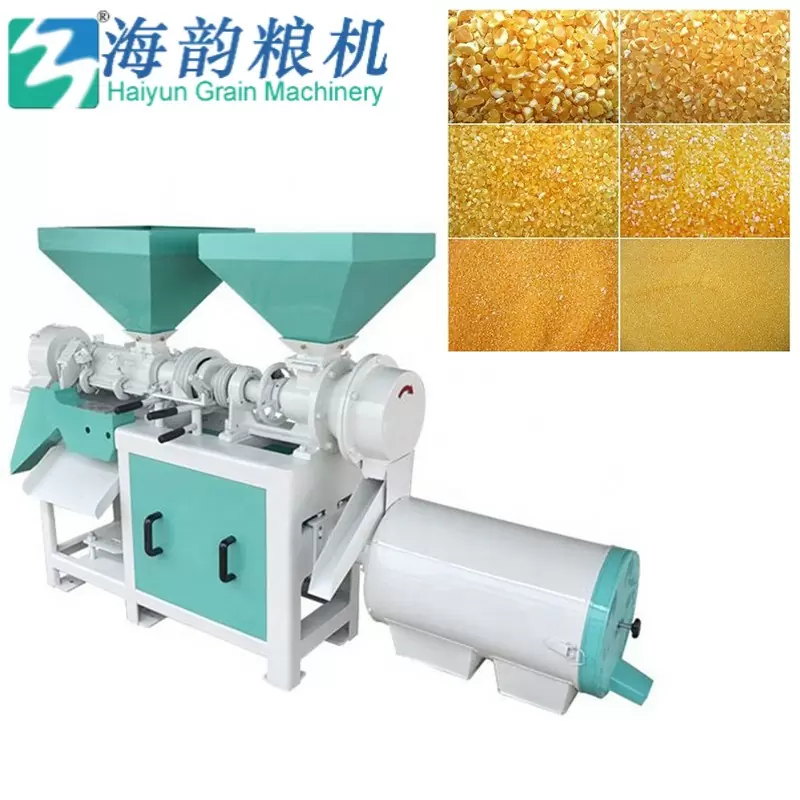

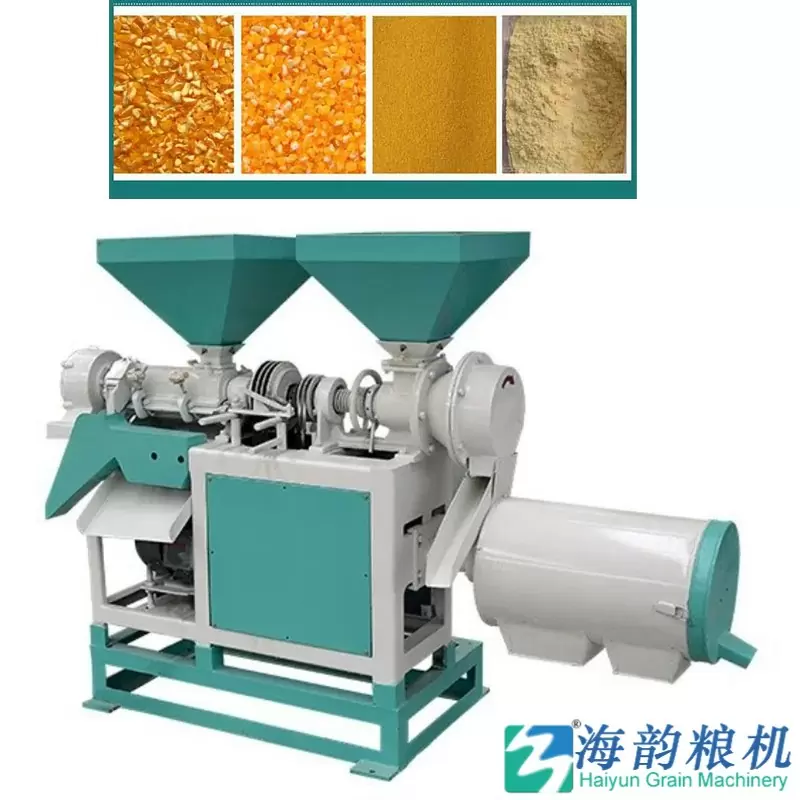

Multifunctional High-Efficiency Corn Peeling, Grits, and Flour Milling Machine
Technical Parameters
| Parameter | Value |
|---|---|
| Input capacity | 300–500 kg/hour (corn/maize) |
| Power | 11 kW, 380V, 50Hz |
| Weight | 300 kg |
| Dimensions | 2200 × 500 × 1200 mm |
| Remarks | Final product can be selected and adjusted as required |
Product Description
Capacity reference: For every 100 kg of maize input, the output is approximately 35 kg of flour, 45 kg of grits, and 20 kg of bran.
Multifunctional High-Efficiency Flour Machine
Scientific design: Three clutches allow the three units to work independently or together.
Advantages: High efficiency, multifunctional, low price, and good quality.
Applications
This machine can be used for:
-
Corn peeling, grits and flour milling
-
Wheat peeling and flour milling
-
Paddy peeling and polishing
-
Sorghum peeling and flour milling
It is mainly suitable for small grain processing workshops.
Working Principle
The machine integrates corn peeling, polishing, grits and flour making, end-product classification, and winnowing.
Clean raw grain is fed into the inlet for peeling, degermination, and removal of black impurities. It can be processed into clean kernels in a single pass.
After crushing and mixture grading, the machine produces three final products: medium grits, small grits, and corn flour. A high-efficiency air draft chamber inside collects the corn skin (bran) produced during peeling.
The kernel size can be adjusted using the grits-making bolt. Grits granularity is controlled by adjusting the gap between the two fluted discs.
Features
-
Built-in winnowing and dust removal blower – efficiently collects bran and impurities through the air channel.
-
High yield and good performance – the peeling chamber discharge port uses a pressure valve to precisely control the material retention time inside the chamber, ensuring effective friction with the alloy roller for optimal peeling.
-
Low energy consumption, wide application – the unit combines peeling, grits, and flour milling functions. A single 11 kW motor serves as the power source, reducing input cost. Suitable for corn, wheat, and sorghum peeling, kernel making, and flour production.
-
Available spare parts – grinding core, roller, peeling blade, peeling screen, V-belt, brush, etc.
Product Introduction (General)
Our company holds ISO9001 certification, guaranteeing the quality of our machinery.
-
Manual or pneumatic drive options – easy and efficient operation.
-
Single automatic loading miller or complete flour mill plants – various configurations available based on your needs (capacity, scale, flour grade, etc.).
-
Safe and reliable design, with reasonable installation solutions provided by experienced engineers.
-
Friendly pre-sale service, responsive sales support, prompt delivery, and professional after-sales service – you will receive a complete turnkey solution.
Packaging & Shipping
-
Inner packaging: Stretch film
-
Outer packaging: Standard wooden case or shipping container
-
Delivery time: Approximately 10 days after payment
Our Services
We provide turnkey project services, including custom design, installation, commissioning, and worker training. All equipment comes with one year of free spare parts and a one-year quality guarantee. In addition, our company offers lifelong service for our products.
We look forward to cooperating with more customers for mutual development and benefits. Potential buyers are welcome to contact us.
FAQ
Q1: What are your advantages? Why should we choose you?
A: We have 70 years of experience in the design and manufacture of grain machinery, with the most professional technology and team. We also offer competitive pricing.
Q2: Are you a manufacturer?
A: Yes, we are a manufacturer with more than 70 years of experience (originally Shandong Flour Machinery Factory).
Q3: Can you show how the machine works?
A: Certainly. We will provide operation videos and instructions together with the machine to help you use it effectively.
Q4: How can I be sure the machine works well?
A: Before delivery, we will test and adjust the machine to ensure it is in good working condition. You can use it directly upon receipt.
Q5: Do you have ISO certification?
A: Yes, each model of our machine is ISO certified.
