Main Technical Parameters Details

1. Input Capacity: 250 tons per 24 hours for maize.
2. Final Products: Maize flour: 50-60%; Maize grits: 15-20%
3. Feed Powder: 15-19% (including bran, corn flour, black root, etc.)
4. Finished Products Standard: Both maize grits and maize flour meet or exceed Chinese National Standards, or can be customized according to the customer’s local standards. Noise and dust levels in the workshop comply with National Standards.
5. Raw Material Requirements: Mainly adopts flint corn; moisture content within 17%, bulk density greater than 710kg/m³, and hard corn ratio more than 70%. (Note: Corrected unit from kg/L to kg/m³, which is the standard unit for bulk density of grains)
6. Power Matching: Approximately 820kW (raw material processing power).
7. Operating Conditions: Voltage: 380V, Frequency: 50HZ (or customized according to local conditions); Elevation below 1500m.
8. Workshop Dimensions: The overall size of the maize flour workshop equipment is L35M × W9M × H12M, designed as a concrete structure.
9. Shipping Requirement: 15 × 40HQ containers.
10. Installation Terms: Installation is a chargeable service, including installation guidance, test running, and training for local workers. The buyer shall be responsible for the technicians’ visa fees, round-trip tickets, accommodation, meals, local transportation, and medical insurance. In addition, the buyer shall directly pay each technician US$100 per day. This set of equipment requires 1 engineer for installation, with a standard installation period of 100 days; the final installation duration is subject to local on-site conditions. The factory engineer is mainly responsible for technical guidance, and the customer shall provide 4-6 workers to assist the engineer.

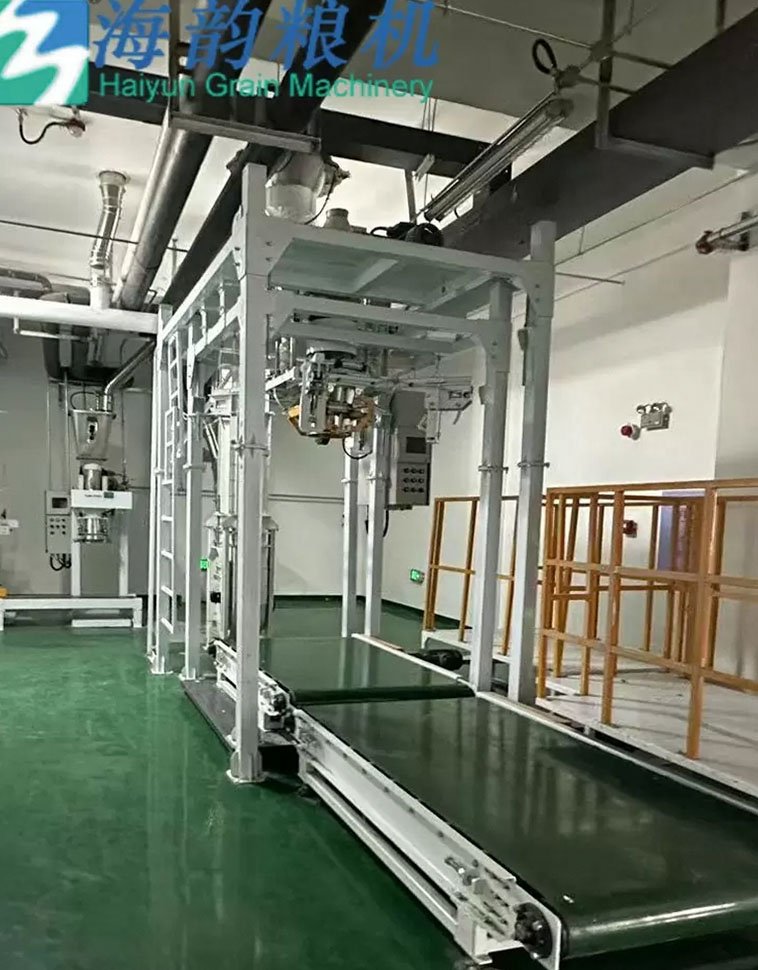

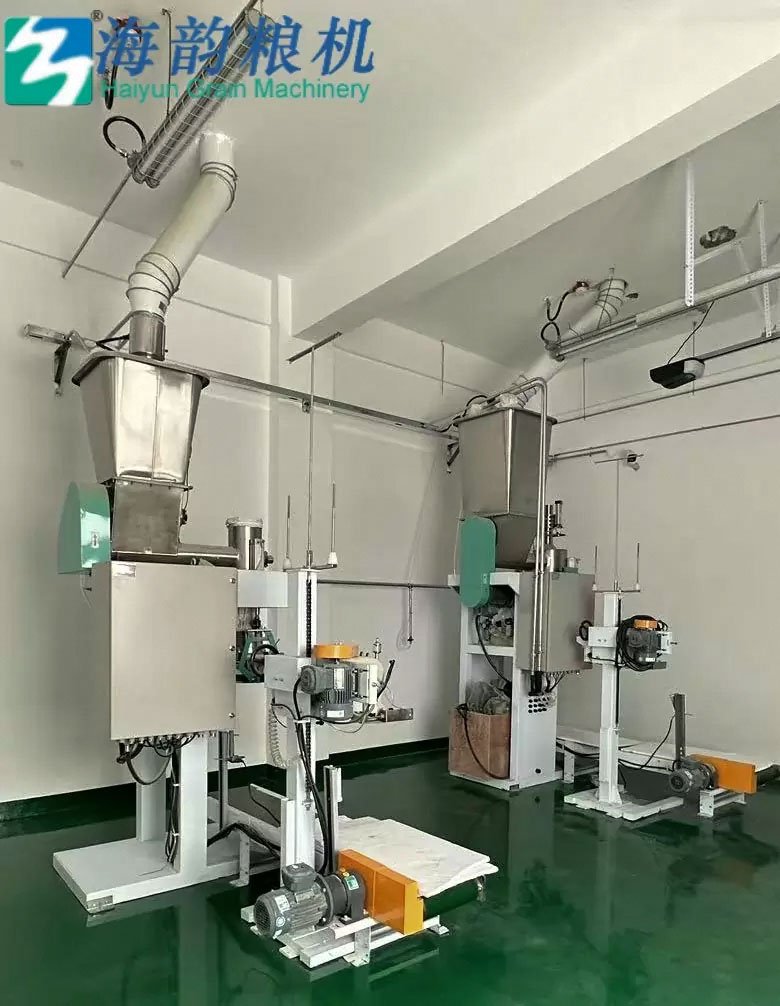

11. Staff Requirement: For the complete set of maize flour milling equipment, each shift requires 2 operation technicians and 6 workers responsible for operating the packaging system and conveying packages.
12. Customer-Supplied Items: Necessary hoisting equipment and tools for installation, water supply, and power supply (transformer not less than 1200kW, etc.).
13. Responsibilities of Both Parties: The supplier shall be responsible for factory layout design, architectural design of the main workshop, installation guidance, test running, training of local workers (chargeable service), and construction supervision (chargeable service). The customer shall be responsible for civil engineering in accordance with the design requirements, carry out installation and test running under the guidance of the supplier’s experts, and provide necessary facilities and assistance.

Maize Grits, Flour & Germ Extraction Equipment

Technical Parameters (Maize Processing Line)

• Product Types: Maize grits, maize flour, maize germ, maize skin
• Power Consumption: 55-64kw/h
• Finished Product Rate: Maize grits: 40%-50%; Maize flour: 25%-30%; Maize germ: 7%-8%; Maize skin: 25%

Product Quality Parameters

• Coarseness of Maize Flour: 40-200 mesh (adjustable)
• Moisture Content: Less than 13.5%-14.5%
• Sand Content: <0.02%
• Fat Content: 0.4%-1.7%
• Magnetic Metal Content: <0.003 g/kg
• Appearance: Bright color, uniform grit size, high germ integrity rate, and fine powder texture.

HYYM – Maize Grits, Flour Extraction & Germ Production Line

Product Introduction

1. Optional manual or pneumatic drive mode, making operation easy and labor-saving.
2. We provide single automatic loading milling machines and complete sets of maize processing plants for your different needs; meanwhile, various configurations are available according to your specific requirements (such as production capacity, manufacturing scale, and product grade).
3. Adopting a safe and reliable design mode, we provide reasonable installation solutions by experienced engineers.
4. We offer friendly pre-sales service, thoughtful in-sales service, prompt delivery, and professional after-sales service; you can enjoy our one-stop turnkey service.

Packaging & Shipping

• Inner Packaging: Wrapped with stretch film.
• Outer Packaging: Standard export wooden case or shipping container.
• Delivery Time: Around 100 days upon receipt of payment.

Our Services

FAQ

• Q1: What’s your advantage? Why should we choose you? A: We have 60 years of experience in the design and manufacture of grain machinery. We have the most professional technology and team, as well as competitive pricing advantages.
• Q2: Are you a manufacturer? A: Yes, we are a manufacturer with more than 70 years of experience (formerly known as Shandong Flour Machinery Factory).
• Q3: Can you show how the machine works? A: Certainly. We will send you operation videos and instructions together with the machines to help you use the equipment better.
• Q4: How can I know your machine works well? A: Before delivery, we will test and adjust the machine to ensure it is in good working condition, so you can use it directly upon receipt.
• Q5: Do you have ISO certification? A: Yes, every model of our machine is equipped with a valid ISO certificate.
